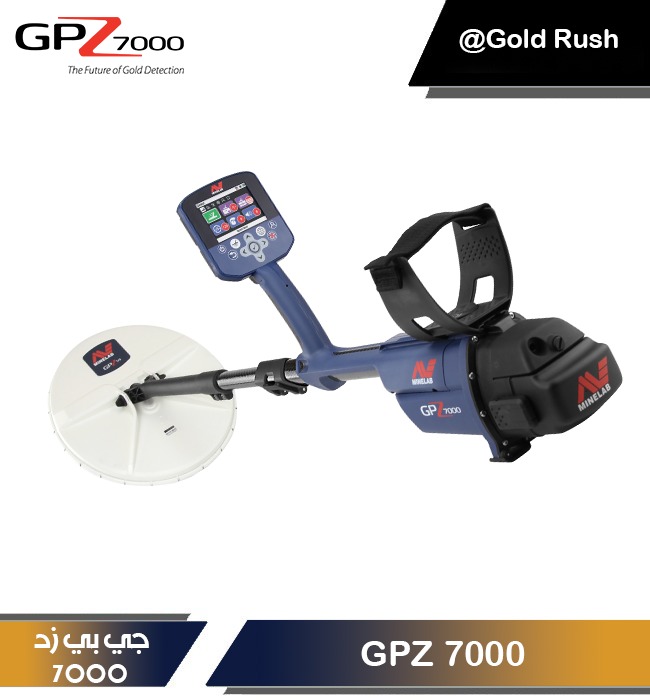

GPZ 7000

The Future of Gold Detection

With extreme depth and maximum sensitivity on all gold, the innovative GPZ 7000 gold detector takes you to the NEXT LEVEL of gold detection.

This exciting detector has many versatile features and new technologies, including wireless audio, integrated GPS and a weatherproof platform.

With extreme depth capability and maximum gold sensitivity, the innovative GPZ 7000 takes gold detecting to a new level of performance. This exciting detector has many versatile features and new technologies including wireless audio, integrated GPS and a weatherproof platform. With easy page navigation for detecting and mapping functions, and icons showing settings at a glance, you’ll be an expert in no time!

Features

Extreme Gold Depth
So how deep can you go? Well, up to 40% deeper than the GPX series. Old gold fields are new again, thanks to the revolutionary new ZVT technology. Minelab takes you much deeper than ever before!

Maximum Gold Sensitivity
The incredible sensitivity of the GPZ 7000 with the Super-D coil gives you the ultimate advantage in the field. Find gold others have missed, from sub-gram gold through to those elusive ‘retirement nuggets’ still out there.

Precision Ground Balance
Most gold is buried in the mineralised ‘difficult’ ground that many detectors can’t cope with. The GPZ 7000 accurately ‘balances’ and automatically ‘tracks’ to even the most severe ground conditions, with ease.

Enhanced Noise Immunity
The outstanding noise immunity of the GPZ 7000 enables very smooth and quiet detecting. With 256 Noise Cancel channels, the GPZ 7000 picks up less atmospheric noise. Listen to the gold, not the noise interference!

Simple Menu System
The easy-to-use Menu Pages group similar functions together under Detect and Map sections, with all settings quickly accessible. Use the Guide Sequences to get started. You don’t need to be an expert to find gold!

Wireless Audio Freedom
Detect without your headphones attached to the detector. With the WM 12 Wireless Module you have the choice of using the in-built speaker, the supplied headphones, or your favourite headphones.

GPS Locating & PC Mapping
See your location and log gold finds as you detect. With the built-in GPS you’ll efficiently cover more ground and won’t miss a nugget! Record your favourite ‘hot-spots’ by saving data to XChange 2 with Google Maps.

Waterproof Coil to 1 m (3 ft)
The GPZ 14 coil is waterproof and submersible to a depth of 1 m (3 ft). You can easily detect rivers and shorelines with no fuss! The weatherproof design of the GPZ 7000 allows you to go detecting in rainy or wet conditions.

Note: When compared to the average performance of the GPX 5000 in typical environments. Actual performance depends on prevailing conditions. GPZ 7000 detector is weatherproof only. GPZ 14 coil is fully waterproof to 1 m (3 ft). WM 12 is not waterproof or weatherproof.

New Gold Technology
ZVT technology goes to the NEXT LEVEL for all serious gold prospectors, providing substantially improved depth. No longer will you be limited to using either sine wave continuous VLF transmission detectors, that struggle in mineralised ground, or square wave PI transmission detectors, that can be insensitive to varying gold sizes and compositions.

ZVT (Zero Voltage Transmission) creates ultra-constant high-power opposite polarity magnetic fields, increasing gold sensitivity. This innovative technology detects gold nuggets at extreme depths.

Super-D The Super-D smart coil consists of a central transmit winding and two outer receive windings. This configuration greatly decreases interference from magnetic soils, reducing ground noise.

GPSi uses a u-blox GPS engine to integrate location and time data with detector settings. This creates WayPoint, FindPoint and GeoHunt files to use with XChange 2.

Wi-Stream uses low-power digital audio transmission to achieve no perceivable audio time lag (<10 ms). This provides reliability and maximum sound quality.

Simple Menu Navigation
With intuitive page navigation for detecting and mapping functions, and icons showing settings at a glance, you’ll be an expert in no time! The GPZ 7000 is fully customisable and configurable, with many easily adjustable functions.

Audio Discrimination
When prospecting the golden rule is to dig all solid signals. However, the type of target under the coil and buried beneath the ground can be distinguished by the audio response the detector sounds.

The GPZ 7000 gold detector audio response provides discrimination in the form of pitch and tone when the coil passes over ferrous or non-ferrous targets, similarly with amplitude and duration for shallow and deep targets.

For example, the audio response for small gold will be a low-pitched tone followed by a high-pitched tone. A ferrous signal such as a bottle cap will produce a high-pitched tone followed by a low-pitched one, enabling the user to discriminate the ferrous target.

A louder, shorter sound will indicate a shallow target while a quieter, broader sound will indicate the presence of a deep, large target. A target that sounds off multiple times each swing will invariably be a near-surface or surface target.
