Rex Pipe & Cable Locator


Rex is a multi-frequency locator with a price tag comparable to single-frequency locators. The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag.

Compare

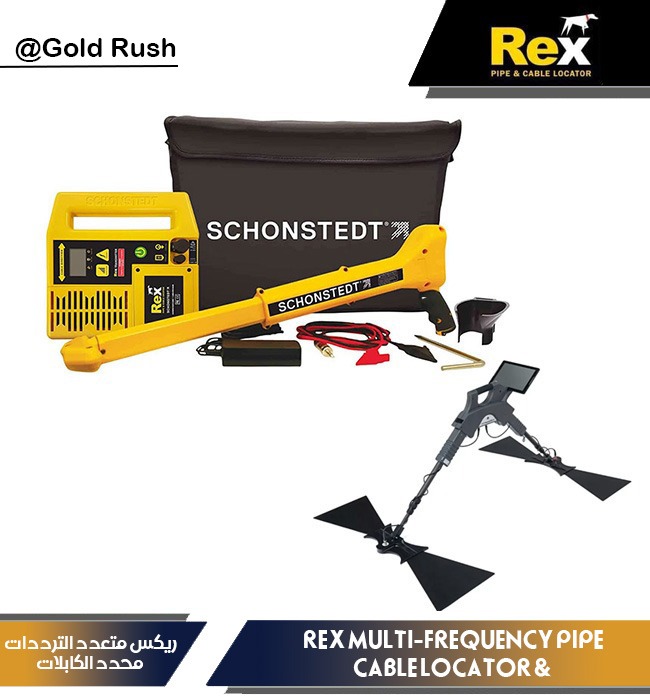

Rex Multi-Frequency Pipe & Cable Locator

Rex is Schonstedt’s newest pipe and cable locator, recommended for all underground utilities: water and sewer, electric, telecom, and gas.

Rex is a multi-frequency locator with a price tag comparable to single-frequency locators. The sleek design of the transmitter is less than 2” thick and weighs less than 4 lbs. At slightly over 7 lbs., the entire system fits easily into a custom shoulder bag.

Rex Standard Features

  • Ultralight Design: Receiver + Transmitter = Under 7lbs
  • Compact & Portable: Receiver retracts for easy carrying
  • Multi-Frequency Versatility: 512 Hz, 33 kHz and 82 kHz, plus 50/60 Hz passive and 512 Hz sonde detection
  • Transmitter comes equipped with rechargeable batteries
  • Schonstedt’s 3-year warranty

How Does Rex Stack Up?

A new slim and ultralight transmitter was designed specifically for Rex. Its thin and sleek profile combines with a retractable receiver to make Rex the most user-friendly and portable pipe & cable locator on the market. And best of all, Rex is a multi-frequency locator with a price tag comparable to single-frequency locators.

Rex Specifications

Receiver

Operating Frequency: Active: 512 Hz, 33 kHz and 82 kHz;
Passive: 50 or 60 Hz; Sonde: 512 Hz
Battery One 9V battery
Battery Life: 12 hours (intermittent use)
Weight (incl. batteries): 2.8 lbs (1.25 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Water and Dust Resistance: Rated IP54
Dimensions: Closed:
17.5″ (~44 cm)Extended:
Extended: 27.7″ (~70 cm)
Max. Depth Capability: Approximately 19′ (5.8 m)
Sonde mode – approximately 5’ – 15’ (1.5 m to 4.2 m)

Transmitter

Operating Frequency: 82kHz, 33kHz & 512 Hz
Operating Modes: Conductive, Inductive, and Inductive Clamp
Max. Output Power:
(Conductive mode @ 1000 Ω load)
512 Hz – 1/2, 1, 2 or 5 W
33 kHz – 1/2, 1, 2 or 5 W
82 kHz – 1/2 or 1
Battery Type: Rechargeable NiMH pack (12V)
Battery Life: 8 Hours (intermittent use)
Charging: Internal Smart Charger powered by AC/DC power adapter
Dimensions 10” x 10.25” x 1.75”
(25.4 cm x 26 cm x 4.5 cm)
Weight (incl. batteries): 3.5 lbs (1.6 kg)
Operating Temp: -4°F to 140°F (-20°C to 70°C)
Backlighting: White LED array
Water and Dust Resistance: Rated IP54
